Double Side Thermal Release Tape

Product Detail

Thermal Release Double Side Tape, Transfer Tape

Model : SDF

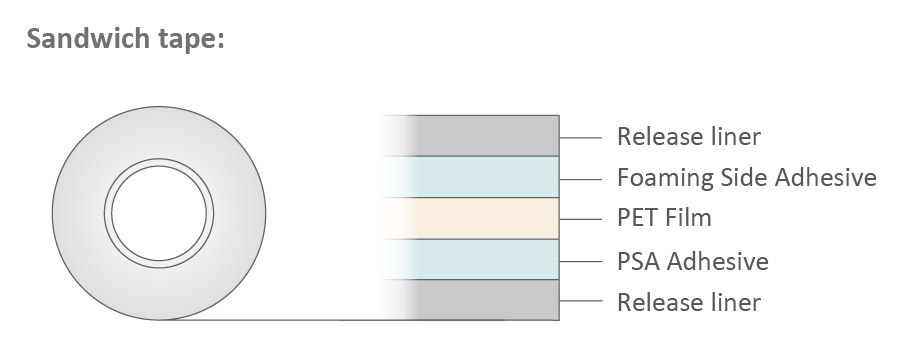

Sandwich type of thermal release tape :

♠ Double side with foaming adhesive, for any production process, as carrier or temporary fixing.

♠ Single side foaming adhesive, for any production process, as carrier or temporary fixing.

♠ Thermal release temperature: 85~260°C

Model	Material	Physical Property			Applications
SDF30850-1R	PET Film Double side Thermal Release Adhesive	Total Thickness	130 ± 7	µm	Release Temperature 85℃ , 3-5 min
		Before Heating Adhesion	0.1-0.4	kg/in
		After Heating Adhesion	0.015 ↓	kg/in
SDF90910	PET Film Double Sided A Side UV Release B Side Thermal Release	Total Thickness	186 ± 10	µm	Release Temperature 90℃ , 3-5 min
		Before Heating Adhesion	0.8 ↑	kg/in
		After Heating Adhesion	0.015 ↓	kg/in
SDFA90910	PET Film Double Sided A Side UV Release B Side PSA	Total Thickness	160 ± 9	µm	Release Temperature 100℃ , 3-5 min
		Before Heating Adhesion	0.9 ↑	kg/in
		After Heating Adhesion	0.015↓	kg/in
		PSA adhesion	0.2 ↑	kg/in
SDF91210-2	PET Film Double Side Thermal Release Adhesive	Total Thickness	180 ± 10	µm	Release Temperature 120℃ , 3-5 min
		Before Heating Adhesion	1.0 ↑	µm
		After Heating Adhesion	0.015↓	kg/in
SDF91510-2	PET Film Double Side Thermal Release Adhesive	Total Thickness	190 ± 10	µm	Release Temperature 150℃ , 3-5 min
		Before Heating Adhesion	0.9 ↑	µm
		After Heating Adhesion	0.015 ↓	kg/in
SDF71938-2	PET Film Double Side Thermal Release Adhesive	Total Thickness	144 ± 8	µm	Release Temperature 190℃ , 3-5 min
		Before Heating Adhesion	0.5 ↑	kg/in
		After Heating Adhesion	0.015 ↓	kg/in
SDFA72038	PET Film One Side Thermal Release / The Other Side PSA	Total Thickness	96 ± 5	µm	Release Temperature 210℃ , 3-5 min
		Before Heating Adhesion	0.3 ↑	kg/in
		After Heating Adhesion	0.015↓	kg/in
		PSA Adhesion	0.3↑	kg/in

Transfer type of thermal release tape:
