Name: Double Side Thermal Release Tape | Semiconductor Tape
Availability: InStock

Double side with foaming adhesive, for any production process, as carrier or temporary fixing.
Single side foaming adhesive, for any production process, as carrier or temporary fixing.
Thermal release temperature: 85~260°C

Model	Material	Physical Property			Temp.
SDF30850-1R	PET Film Double side thermal release adhesive	Total thickness	130 ± 7	um	Release Temperature 85℃ , 3-5 min
		Before heating adhesion	0.1-0.4	kg/in
		After heating adhesion	0.015 ↓	kg/in
SDF90910	PET Film Double side thermal release adhesive	Total thickness	186 ± 10	um	Release Temperature 90℃ , 3-5 min
		Before heating adhesion	0.8 ↑	kg/in
		After heating adhesion	0.015 ↓	kg/in
SDFA90910	PET Film One side thermal release / the other side PSA	Total thickness	160 ± 9	um	Release Temperature 100℃ , 3-5 min
		Before heating adhesion	0.9 ↑	kg/in
		After heating adhesion	0.015↓	kg/in
		PSA adhesion	0.2 ↑	kg/in
SDF91210-2	PET Film Double side thermal release adhesive	Total thickness	180 ± 10	um	Release Temperature 120℃ , 3-5 min
		Before heating adhesion	1.0 ↑	um
		After heating adhesion	0.015↓	kg/in
SDF91510-2	PET Film Double side thermal release adhesive	Total thickness	190 ± 10	um	Release Temperature 150℃ , 3-5 min
		Before heating adhesion	0.9 ↑	um
		After heating adhesion	0.015 ↓	kg/in
SDF71938-2	PET Film Double side thermal release adhesive	Total thickness	144 ± 8	um	Release Temperature 190℃ , 3-5 min
		Before heating adhesion	0.5 ↑	kg/in
		After heating adhesion	0.015 ↓	kg/in
SDFA72038	PET Film One side thermal release / the other side PSA	Total thickness	96 ± 5	um	Release Temperature 210℃ , 3-5 min
		Before heating adhesion	0.3 ↑	kg/in
		After heating adhesion	0.015↓	kg/in
		PSA adhesion	0.3↑	kg/in

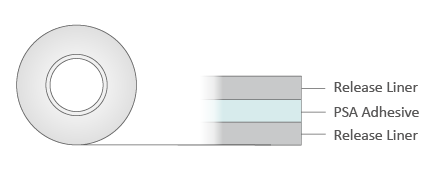

Transfer type of thermal release tape:

Double Side Thermal Release Tape
